PRODUCTS
PPS（N）
Polyphenylenesulphide
PPS(N)
Natural color
（Unfilled material）
（Unfilled material）
- Heat Resistance
- 112℃
- Tensile Strength
- 83MPa
- Chemical Resistance
- Resists most acids and alkalis
- Price
- ★★★
Characteristics
- Excellent continuous durability at high temperature, rigidity,and fire-resistance.
- Excellent chemical resistance and electric insulation.
- Excellent moisture resistance.
- Excellent tensile strength and flexural modulus with good electrical properties.
Applications

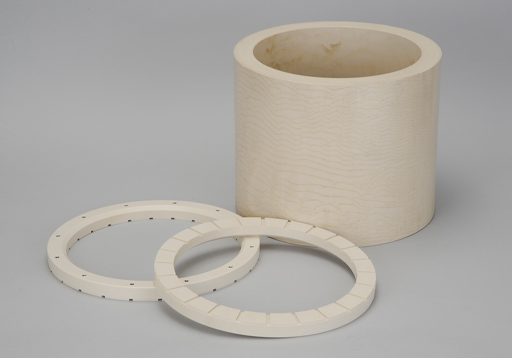

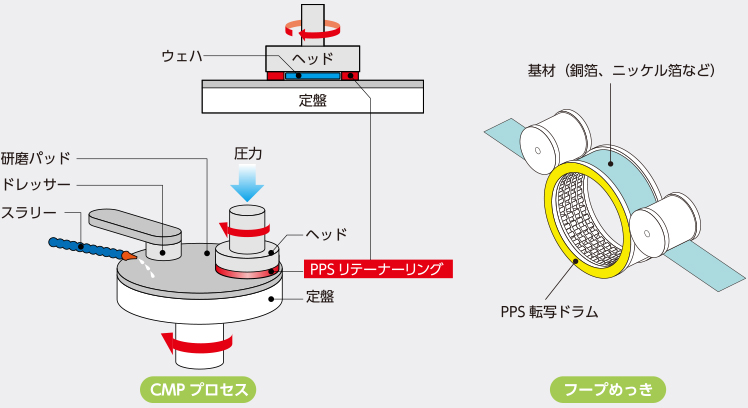

- CMP retainer ring, Hoop plating mask, Chemical pump parts, Connectors, etc...
Attention
- Easy to turn color to light brown by ultraviolet light or fluorescent light
Properties
| ITEM | UNIT | ASTM Method | PPS(N) | PPS/GF40 |
|---|---|---|---|---|
| Specific gravity | - | D792 | 1.35 | 1.66 |
| Water absorption immersion 24h | ％ | D570 | 0.02 | 0.015 |
| Tensile strength | MPa | D638 | 83 | 196 |
| Tensile elongation | ％ | D638 | 21 | 2.2 |
| Flexural strength | MPa | D790 | 142 | 255 |
| Flexural modulus | MPa | D790 | 3,900 | 13,200 |
| Izod impact strength | J/m | D256 | 18 | 98 |
| Rockwell hardness | - | D785 | M93 | M100 |
| Heat deflection temperature 1.82MPa | ℃ | D648 | 112 | 260 |
| Flammability | - | （UL94） | V-0 相当 | V-0 相当 |
| Coefficient of linear thermal expansion | xE-5/℃ | D696 | 2.6 | 1 |
| Crystal melting temperature | ℃ | - | 275 | 275 |
| Glass transition temperature | ℃ | - | 90 | 90 |
| Volume resistivity | Ω・cm | D257 | 2×E16 | 3×E15 |
| Dielectric constant 1MHz | - | D150 | 3.6 | 4.3 |
| Dielectric loss tangent 1MHz | - | D150 | 0.0011 | 0.002 |
| Dielectric strength | MV/m | D149 | 15 | 17 |
Product Size Table
Notes
The application examples described are for reference only,the use is not guaranteed.
Please refer to the SDS for handling (transport, storage, molding, disposal).
Espechially please confirm the suitability and safety for food use, medical use, safety equipment, toys, etc.
Our products may correspond export trade control items,please check the relevant laws and regulations.
