PA6/GF30 Black
Polyamid 6
PA6/GF30 Black
(Glass fiber 30% reinforced）
- Heat Resistance
- 205℃
- Tensile Strength
- 141MPa
- Chemical Resistance
- Excellent oil resistance
- Price
- ★★★
Characteristics
- Excellent abrasion-resistance, impact resistance ,oil resistance and durable under low temperature.

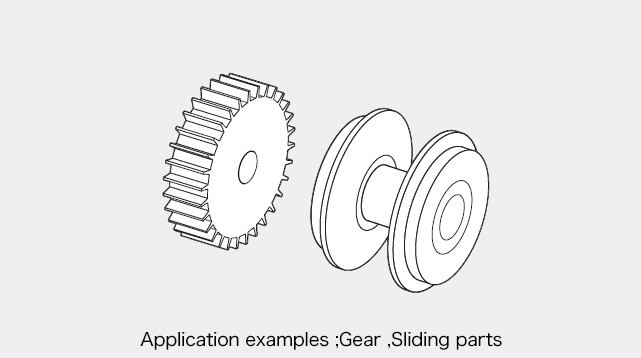

Applications
- Machine parts, electrical telecommunication equipment parts, transportmachine parts, office machine parts, gas tanks, electrical and electronicparts, gears, fasteners, suction pipes, radiator tanks, cooling fans.Machine parts,and electrical equipment parts
Attention
- Be careful about dimensional changes due to high water absorption
Properties
| ITEM | UNIT | ASTM Method | PA6 | PA6/GF30 |
|---|---|---|---|---|
| Specific gravity | - | ISO1183 | 1.14 | 1.3 |
| Water absorption immersion 24h | ％ | ISO62 | 2.5 | 2 |
| Tensile strength | MPa | ISO527 | 80 | 150 |
| Tensile elongation | ％ | ISO527 | ＞50 | 4 |
| Flexural strength | MPa | ISO178 | 110 | 216 |
| Flexural modulus | MPa | ISO178 | 2,700 | 7,000 |
| Izod impact strength | kJ/m2 | ISO179 | 5 | 15 |
| Rockwell hardness | - | D785 | R120 | ー |
| Heat deflection temperature 1.82MPa | ℃ | ISO75 | 60 | 200 |
| Flammability | - | （UL94） | HB/1.5 | HB |
| Coefficient of linear thermal expansion | xE-5/℃ | ISO11359 | 8 | 0.2 |
| Crystal melting temperature | ℃ | ISO11357 | 215～225 | 222 |
| Glass transition temperature | ℃ | - | ー | ー |
| Volume resistivity | Ω・cm | IEC93 | ー | 1 x E12 |
| Dielectric constant 1MHz | - | IEC93 | 3.5 | ー |
| Dielectric loss tangent 1MHz | - | D150 | ー | ー |
| Dielectric strength | MV/m | IEC60243 | ー | 41 |
Product Size Table
Notes
The application examples described are for reference only,the use is not guaranteed.
Please refer to the SDS for handling (transport, storage, molding, disposal).
Espechially please confirm the suitability and safety for food use, medical use, safety equipment, toys, etc.
Our products may correspond export trade control items,please check the relevant laws and regulations.
