PPS/GF40 Black
Polyphenylenesulphide
PPS/GF40
Black
(Glass fiber 40% reinforced)
(Glass fiber 40% reinforced)
- Heat Resistance
- 260℃
- Tensile Strength
- 196MPa
- Chemical Resistance
- Resists most acids and alkalis
- Price
- ★★★★
Characteristics
- Excellent continuous durability at high temperature, rigidity,and fire-resistance.
- Excellent chemical resistance and ellectric insulation.
- Excellent moisture resistance.
- Excellent tensile strength and flexural strength.

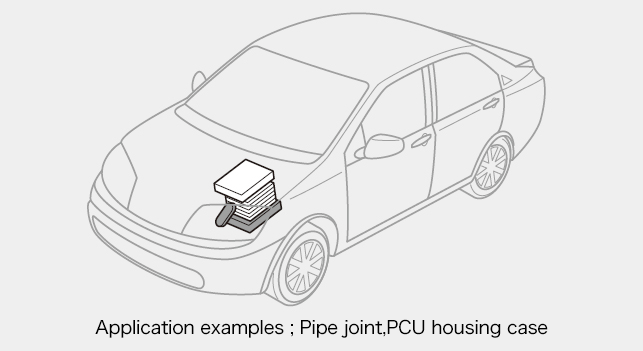

Applications
- Connectors, coil formers, bobbins, terminal blocks, relay components, molded bulb sockets for electrical power station control panels, brush holders, motor housings, engine exhaust gas return valves, cooking appliances, and medical, dental and laboratory
Attention
- Be careful of parts that require complete airtightness.
Properties
| ITEM | UNIT | ASTM Method | PPS | PPS/GF40 |
|---|---|---|---|---|
| Specific gravity | - | D792 | 1.35 | 1.66 |
| Water absorption immersion 24h | ％ | D570 | 0.02 | 0.015 |
| Tensile strength | MPa | D638 | 83 | 196 |
| Tensile elongation | ％ | D638 | 21 | 2.2 |
| Flexural strength | MPa | D790 | 142 | 255 |
| Flexural modulus | MPa | D790 | 3.9 | 13.2 |
| Izod impact strength | J/m | D256 | 18 | 98 |
| Rockwell hardness | - | D785 | M93 | M100 |
| Heat deflection temperature 1.82MPa | ℃ | D648 | 112 | 260 |
| Flammability | - | （UL94） | V-0 相当 | V-0 相当 |
| Coefficient of linear thermal expansion | xE-5/℃ | D696 | 2.6 | 1 |
| Crystal melting temperature | ℃ | - | 275 | 275 |
| Glass transition temperature | ℃ | - | 90 | 90 |
| Volume resistivity | Ω・cm | D257 | 2×E16 | 3×E15 |
| Dielectric constant 1MHz | - | D150 | 3.6 | 4.3 |
| Dielectric loss tangent 1MHz | - | D150 | 0.0011 | 0.002 |
| Dielectric strength | MV/m | D149 | 15 | 17 |
Product Size Table
Notes
The application examples described are for reference only,the use is not guaranteed.
Please refer to the SDS for handling (transport, storage, molding, disposal).
Espechially please confirm the suitability and safety for food use, medical use, safety equipment, toys, etc.
Our products may correspond export trade control items,please check the relevant laws and regulations.
